Computing NMR shielding tensors using ShiftML

Authors:

Michele Ceriotti @ceriottm

This example shows how to compute NMR shielding tensors using a point-edge transformer model trained on the ShiftML dataset.

import os
import zipfile

import chemiscope
import matplotlib.pyplot as plt
import numpy as np
import requests

from ase.io import read
from shiftml.ase import ShiftML


if hasattr(__import__("builtins"), "get_ipython"):
    get_ipython().run_line_magic("matplotlib", "inline")  # noqa: F821

Create a ShiftML calculator and fetch a dataset

calculator = ShiftML("ShiftML3")

filename = "ShiftML_poly.zip"
if not os.path.exists(filename):
    url = (
        "https://archive.materialscloud.org/record/file?"
        + "record_id=1503&filename=ShiftML_poly.zip"
    )
    response = requests.get(url)
    response.raise_for_status()
    with open(filename, "wb") as f:
        f.write(response.content)


with zipfile.ZipFile(filename, "r") as zip_ref:
    for file in ["ShiftML_poly/Cocaine/cocaine_QuantumEspresso.xyz"]:
        target = os.path.basename(file)
        with zip_ref.open(file) as source, open(target, "wb") as dest:
            dest.write(source.read())

frames_cocaine = read("cocaine_QuantumEspresso.xyz", index=":16")
reference = [frame.arrays["CS"] for frame in frames_cocaine]

2025-06-17 22:12:14,983 - INFO - Found model version in url_resolve
2025-06-17 22:12:14,983 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_0.pt?download=1
2025-06-17 22:12:14,983 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:17,452 - INFO - Downloaded ShiftML30 and saved to /home/runner/.cache/shiftml/ShiftML30
2025-06-17 22:12:17,577 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:17,578 - INFO - Found model version in url_resolve
2025-06-17 22:12:17,578 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_1.pt?download=1
2025-06-17 22:12:17,578 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:19,817 - INFO - Downloaded ShiftML31 and saved to /home/runner/.cache/shiftml/ShiftML31
2025-06-17 22:12:19,935 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:19,936 - INFO - Found model version in url_resolve
2025-06-17 22:12:19,936 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_2.pt?download=1
2025-06-17 22:12:19,936 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:22,098 - INFO - Downloaded ShiftML32 and saved to /home/runner/.cache/shiftml/ShiftML32
2025-06-17 22:12:22,218 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:22,218 - INFO - Found model version in url_resolve
2025-06-17 22:12:22,218 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_3.pt?download=1
2025-06-17 22:12:22,219 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:24,372 - INFO - Downloaded ShiftML33 and saved to /home/runner/.cache/shiftml/ShiftML33
2025-06-17 22:12:24,494 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:24,495 - INFO - Found model version in url_resolve
2025-06-17 22:12:24,495 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_4.pt?download=1
2025-06-17 22:12:24,495 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:26,602 - INFO - Downloaded ShiftML34 and saved to /home/runner/.cache/shiftml/ShiftML34
2025-06-17 22:12:26,719 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:26,720 - INFO - Found model version in url_resolve
2025-06-17 22:12:26,720 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_5.pt?download=1
2025-06-17 22:12:26,720 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:28,921 - INFO - Downloaded ShiftML35 and saved to /home/runner/.cache/shiftml/ShiftML35
2025-06-17 22:12:29,037 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:29,038 - INFO - Found model version in url_resolve
2025-06-17 22:12:29,038 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_6.pt?download=1
2025-06-17 22:12:29,038 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:31,188 - INFO - Downloaded ShiftML36 and saved to /home/runner/.cache/shiftml/ShiftML36
2025-06-17 22:12:31,305 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it
2025-06-17 22:12:31,306 - INFO - Found model version in url_resolve
2025-06-17 22:12:31,306 - INFO - Resolving model version to model files at url: https://zenodo.org/records/15079415/files/model_7.pt?download=1
2025-06-17 22:12:31,306 - INFO - Model not found in cache, downloading it
2025-06-17 22:12:33,553 - INFO - Downloaded ShiftML37 and saved to /home/runner/.cache/shiftml/ShiftML37
2025-06-17 22:12:33,677 - WARNING - the model suggested to use CUDA devices before CPU, but we are unable to find it

Predicts isotropic chemical shielding tensors, including uncertainty

predicted = [calculator.get_cs_iso_ensemble(frame) for frame in frames_cocaine]

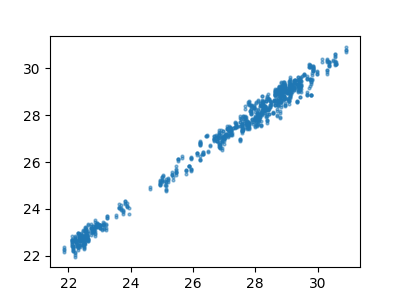

Make a plot for all the H shielding values

h_shieldings = np.hstack(
    [
        [
            r[f.symbols == "H"],
            p[f.symbols == "H"].mean(axis=1),
            p[f.symbols == "H"].std(axis=1),
        ]
        for r, p, f in zip(reference, predicted, frames_cocaine)
    ]
)

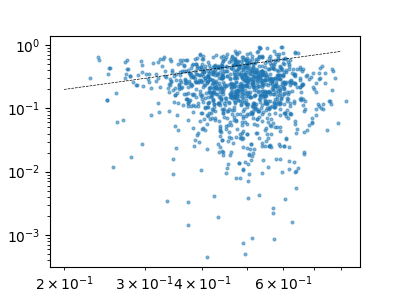

and of the uncertainty

fig, ax = plt.subplots(figsize=(4, 3))

ax.plot(h_shieldings[0], h_shieldings[1], "o", markersize=2, alpha=0.5)

[<matplotlib.lines.Line2D object at 0x7f295be98790>]

fig, ax = plt.subplots(figsize=(4, 3))
ax.loglog(
    h_shieldings[2],
    np.abs(h_shieldings[0] - h_shieldings[1]),
    "o",
    markersize=2,
    alpha=0.5,
)
ax.plot([0.2, 0.8], [0.2, 0.8], "k--", lw=0.5)

[<matplotlib.lines.Line2D object at 0x7f2957437890>]

Anisotropic shielding tensors

tensors = [calculator.get_cs_tensor(frame) for frame in frames_cocaine]

h_tensors = np.array(
    [
        (t[iat] if f.symbols[iat] == "H" else np.zeros((3, 3)))
        for t, f in zip(tensors, frames_cocaine)
        for iat in range(len(f))
    ]
)

chemiscope.show(
    frames_cocaine,
    shapes={
        "cs_ellipsoid": {
            "kind": "ellipsoid",
            "parameters": {
                "global": {},
                "atom": [
                    chemiscope.ellipsoid_from_tensor(cs_h * 0.05) for cs_h in h_tensors
                ],
            },
        }
    },
    mode="structure",
    settings=chemiscope.quick_settings(
        periodic=True,
        structure_settings={
            "shape": ["cs_ellipsoid"],
        },
    ),
)

×
